VFD Selection Guide: How to Choose the Right Variable Frequency Drive

Why VFD Selection Matters

Variable Frequency Drives (VFDs) are critical components that control equipment performance, integrate with control systems, and optimize energy consumption. At Omni Instrumentation & Electrical Services, we've seen firsthand how proper selection requires understanding your specific application requirements — not all VFDs are interchangeable.

Application Examples

On a recent manufacturing facility project, Omni worked with both HVAC and process applications that highlighted the importance of proper VFD specification:

HVAC Systems: Custom air handlers, pumps, and fans used variable torque VFDs in NEMA 12 enclosures with HOA switches and LCD displays.

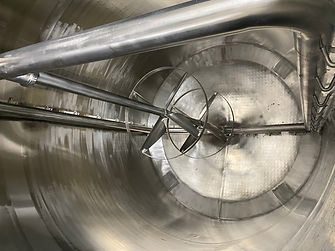

Process Equipment: Mixers, progressive cavity pumps, and conveyors handling viscous materials required constant torque VFDs in NEMA 4X enclosures for harsh washdown environments.

The original electrical specification only addressed variable torque needs, overlooking constant torque requirements for process applications. Our team identified and corrected this during procurement, preventing costly delays and equipment mismatches.

Pre-Selection Checklist

Motor Information Required:

• Horsepower and Full Load Amps (FLA)

• Voltage and RPM

• Service factor

• Inverter-duty rating

Application Requirements:

• Load type (constant vs. variable torque)

• Speed range and control method

• Environmental conditions and enclosure needs

Key Selection Criteria

Current Rating

Size VFD based on motor FLA, not horsepower. Consider oversizing for high-inertia or difficult-starting loads to improve reliability and prevent maximum capacity operation.

Voltage and Phase

Three-Phase: Match VFD, motor, and supply voltage (typically 208V, 230V, or 460V).

Single-Phase Input: Motors ≤3 HP can use dedicated single-phase drives. Larger motors need three-phase drives with 2:1 derating (multiply motor FLA by 2, select VFD rated for twice the FLA). Use line reactors to minimize power quality issues.

Load Type Classification

Variable Torque (fans, centrifugal pumps):

• 120% overload capacity for 1 minute

• Maximum energy savings

• Lower torque at reduced speeds

Constant Torque (conveyors, displacement pumps, extruders):

• 150% overload capacity for 1 minute

• Consistent torque across all speeds

• Handles load variations and spikes

Speed Range Guidelines

• Minimum Speed: 20% of nameplate RPM (use auxiliary cooling below this)

• Maximum Speed: 120% of nameplate RPM (torque decreases above rated speed)

• Keep continuous operation within motor FLA rating

Control Options

Basic Control:

• Two-wire/three-wire control

• Speed potentiometer

• Digital display and programming

Advanced Control:

• Analog signals (4-20mA, 0-10VDC)

• Serial communications (MODBUS RTU)

• Ethernet protocols (MODBUS TCP/IP, Ethernet/IP)

• PLC integration capabilities

Essential Accessories

Standard options include disconnect switches, HOA selectors, pilot lights, bypass contactors, line reactors, harmonic filters, and surge protection. Selection depends on environmental and regulatory requirements.

Best Practices

1. Choose Quality: Select drives from reputable manufacturers with strong service support and spare parts availability

2. Size Conservatively: Apply safety margins for FLA and overload ratings

3. Plan Ahead: Consider future expansion and integration needs

4. Get Expert Help: Consult experienced professionals for complex applications

Bottom Line: Proper VFD selection requires matching drive specifications to application requirements with conservative sizing and quality components. At Omni Instrumentation & Electrical Services, we help clients succeed by providing expert VFD selection and accessory recommendations that meet both current process needs and future expansion plans.
